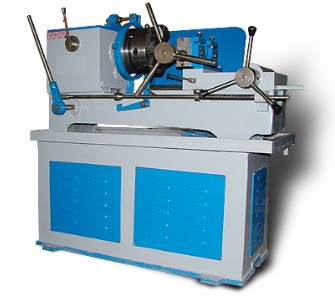

Rebar Threading Machine

Size in Inches : 1/4" to 1", 3/8" to 1.1/2", 1/2" to 2.1/2" Size in MM      : 6mm to 30mm , 9mm to 45mm, 12mm to 65mm

The Rebar Threading Machine is use to cut the external threads with the help of Tangential chaser. Rebar Chaser is use as a cutter in machine. The Rebar remain still, Die-head rotates and different type of threads can be cut parallel and taper such as BSPT, BSW, BSP, NPT, UNF, METRIC, UNC, ACME, BSF Threads.
When one thinks of a Rebar threading machines, the thought automatically goes to the wide range of machines that one can avail in the domain. However, each manufacturing unit or organization will have the need for one particular type of Rebar Threading Machine.

One of the most important factors that you need to think about is the company you are choosing for purchase.
A good company will not only give you a product that is worthy of your trust,but will also ensure that you receive excellent after sales services.but will also ensure that you receive excellent after sales services. . A good machine, whether it is a rebar thread cutting machine or any other, needs to be high on factors of efficiency while being used and durability as well.
If you choose to purchase a rebar thread cutting machine, it would be a good idea to choose a sales unit that has immense market experience. Rohita Industries would be a good choice, as they not only offer a vast range, but also the assurance that every machine that is sent out of their unit is a piece of excellence.

Range of Rebar Threading Machine.

  • 1/4" to 1" do/-
  • 3/8" to 1.1/2" do/-
  • 1/2" to 2.1/2" do/-
  • Specification

    Machine Sizes 1/4" to 1" 3/8" to 1.1/2" 1/2" to 2.1/2"
    Length of Bed 44" 52" 72"
    Width of Bed 11" 12.5" 14.5"
    Height of Bed 11" 12.5" 14.5"
    Length of Pety 44" 52" 22x22.
    20x16"
    Width of Pety 18" 19" 21"
    Height of Pety 20" 20" 20"
    Length of Slide 17" 18" 14.5"
    Width of Slide 11" 12" 4"
    Height of Slide 3" 3" 17"
    Length of Head 14.5" 15.5" 23"
    Width of Head 11" 12" 14.5"
    Height of Head 11.5" 12" 14.5"

    Features:

    • The Spindle Bore 40mm Fitted with Taper Bearing 32212 & 32211
    • The Machine Has Two Speeds 60 & 90 RPM
    • All Gears are Tempered (Oil Seals 42-12-65)
    • Motor Pulley 12" Diameter, V-belt Drive Vice Fitted with Jaw
