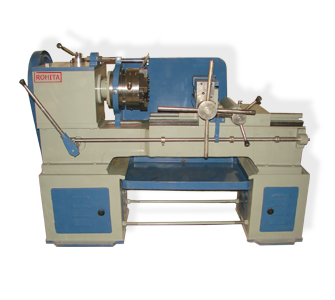

Lanco Threading Machine

Size in Inches : 1/4" to 1", 3/8" to 1.1/2", 1/2" to 2.1/2" Size in MM      : 6mm to 30mm , 9mm to 45mm, 12mm to 65mm

The Lanco Threading Machine is use to cut the external threads with the help of Tangential chaser. Chaser is use as a cutter in Bolt and Pipe threading machine. Bolt and Pipe remain still, Die-head rotates and different type of threads can be cut parallel and taper such as BSPT, BSW, BSP, NPT, UNF, METRIC, UNC, ACME, BSF Threads. The machine mainly consists the following:-

Lanco Threading Machine are designed to give maximum efficiency and reliable performance under the most severe conditions of service with minimum maintenance cost. All the necessary requirements are combined in this model to from the basic fundamentals of correct bolt threading. All the gears are made of case hardened steel with extra large face with and tooth thickness and cut on hobbing machine for noiseless operation even at high speed. Naturally the are built with high standards of workmanship, material and quality so closely associated with COMPANY TRADITION.

Range of Lanco Threading Die Heads.

  • 1/4" to 1" Capacity do/-
  • 3/8" to 1.1/2" Capacity do/-
  • 1/2" to 2.1/2" Capacity do/-
  • Specification

    Machine Sizes 1/4" to 1" 3/8" to 1.1/2" 1/2" to 2.1/2"
    Length of Bed 44" 52" 72"
    Width of Bed 11" 12.5" 14.5"
    Height of Bed 11" 12.5" 14.5"
    Length of Pety 44" 52" 22x22.
    20x16"
    Width of Pety 18" 19" 21"
    Height of Pety 20" 20" 20"
    Length of Slide 17" 18" 14.5"
    Width of Slide 11" 12" 4"
    Height of Slide 3" 3" 17"
    Length of Head 14.5" 15.5" 23"
    Width of Head 11" 12" 14.5"
    Height of Head 11.5" 12" 14.5"

    Features:

    • The Spindle Bore 40mm Fitted with Taper Bearing 32212 & 32211
    • The Machine Has Two Speeds 60 & 90 RPM
    • All Gears are Tempered (Oil Seals 42-12-65)
    • Motor Pulley 12" Diameter, V-belt Drive Vice Fitted with Jaw
